【FEATURES】
1.Cycled magnetic sensor,excellent anti-disturb performance.
2.Tne core system and part of digital signal processing are based on high speed 32bit RISC CPU.
3.Use touch screen technology and based on multi language operation system.
4.Accurate metal or needle chips locating technology,many customer define functios,easy to use.
5.Individual sensibility adjusting for every channel,fit for more product detecting.
6.Smart report system,provide kinds of report.
7.The control systems are vased on RS-485 bus technology.
8.Inatalled machine state indicator and operator guider which are based on matrix LED display technology.
【PURPOSE】
◆ Detecting the metal chips inside the sewing products.
◆ Fabric products pharmaceutical products,chemical products,rubber products,food,etc.
【SPECIFICATIONS】
▲ Model: ZD-630D(100)
▲ Detection method: Magnetic induction
▲ Detection sensitivity: 0.8mm steel to samll scissors
▲ Detection adjustment: MAX.100 steps/channel
▲ Detection width: 650mm
▲ Alarm method: Buzzer,LED indicator
▲ Belt speed: 32m/min(50HZ),40m/min(60HZ)
▲ Power source: AC100-240V 50-60HZ
▲ Rated output: Appr140W
▲ Dimension: 1650mm(L)*1100mm(W)*900mm(H)
▲ Weight: Appr220Kg
【SERIES】
height Detection Sensibility Remark
100mm 0.8mm steel to small scissors Standard type
120mm 1.0mm steel to small scissors Option at Factory
150mm 1.2-1.5mm steel to small scissors Option at Factory
200mm 1.5-2.0mm steel to small scissors Option at Factory
|
|

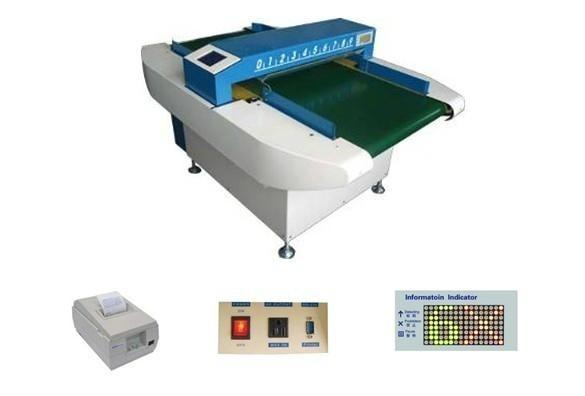

Needle detector 630-D model advanced model Images
|
